NEWMEN Wheelset - Phase 30 | Trail

Overview

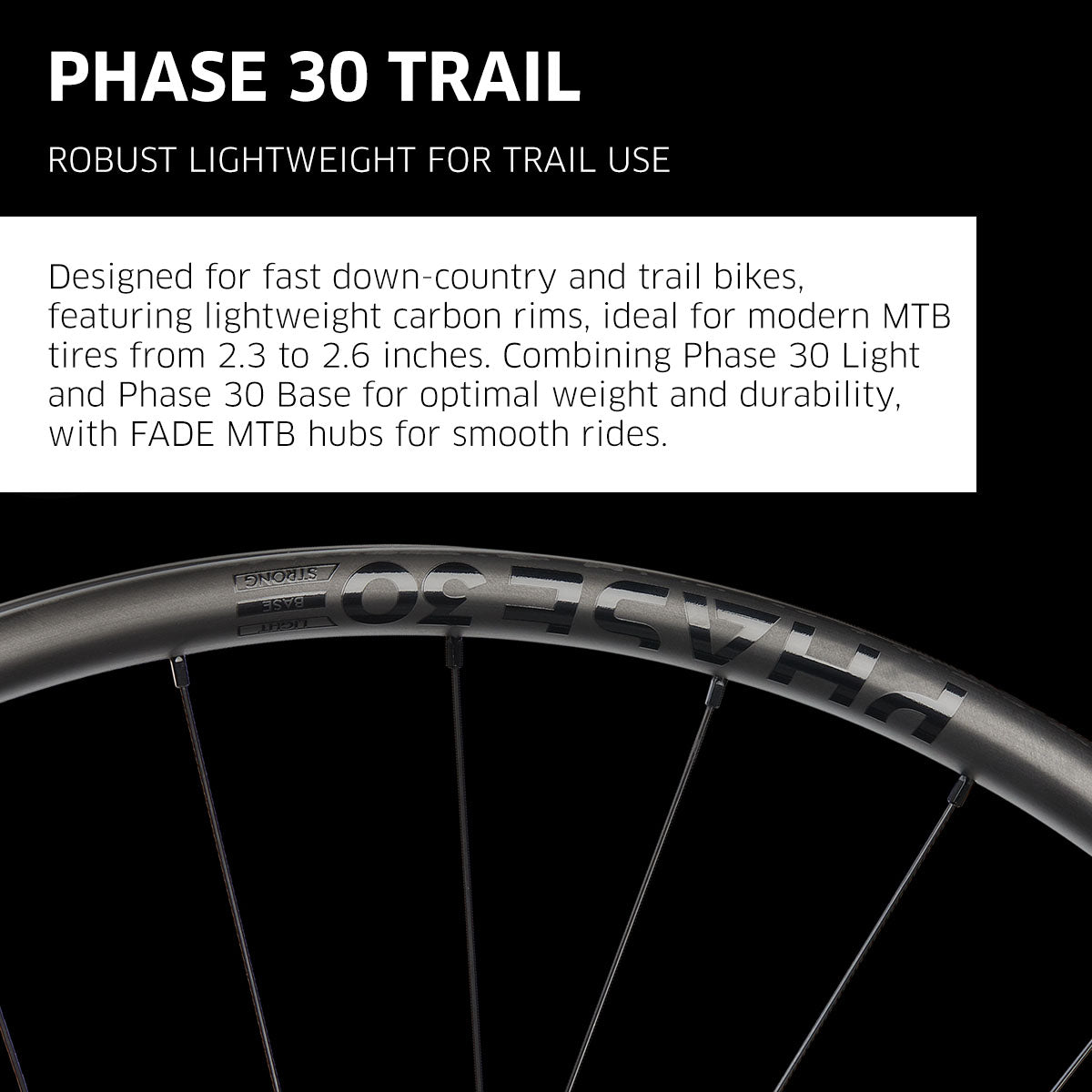

Robust lightweight for trail use

The Phase 30 Trail gets the maximum out of fast down-country bikes and trail bikes! The combination of Phase 30 Light on the front wheel and the more robust Phase 30 Base at the rear guarantees an optimum ratio of weight and durability. With an inner width of 30 millimetres, the hookless carbon rims offer perfect support for modern MTB tires from 2.3 to 2.6 inches. At the same time, the new Phase 30 Base Carbon rim has the same impressive impact resistance as our previous Enduro model, but is 50 grams lighter. Equipped with our proven FADE MTB hubs with whisper-quiet freewheel and an optimized spoke setup, the result is a lightweight, reliable carbon wheelset for almost limitless trail bike adventures in the mountains.

As with all our NEWMEN carbon rims, we also grant a lifetime 50% crash replacement on the Phase 30 Lineup - even for second or third owners.

Please note that the actual item may vary slightly from the pictured product. Rest assured, we'll ship the option you selected. Thank you!

Wheelset Weight: 1455g

Features

In order to achieve the best possible weight and strength at specific price points, we have optimized our wheel configurations for different disciplines by using different weight variants of our rims for front and rear wheels. The spoke selection is also optimized for front/rear and each discipline.

• The proven outer shape of the Advanced SL rims has been retained. The layup has been further refined to improve durability and weight
• Sapim 2.0-1.65-2.0 spokes
• High-end Phase hookless carbon rim
• Finish raw from the mold, not painted
• Ideal support for modern 2.3" to 2.6" MTB tires
• wider tires (and rims) do not make sense in our eyes, because then too little pressure is required to maintain comfort. This results in a mushy ride feel.

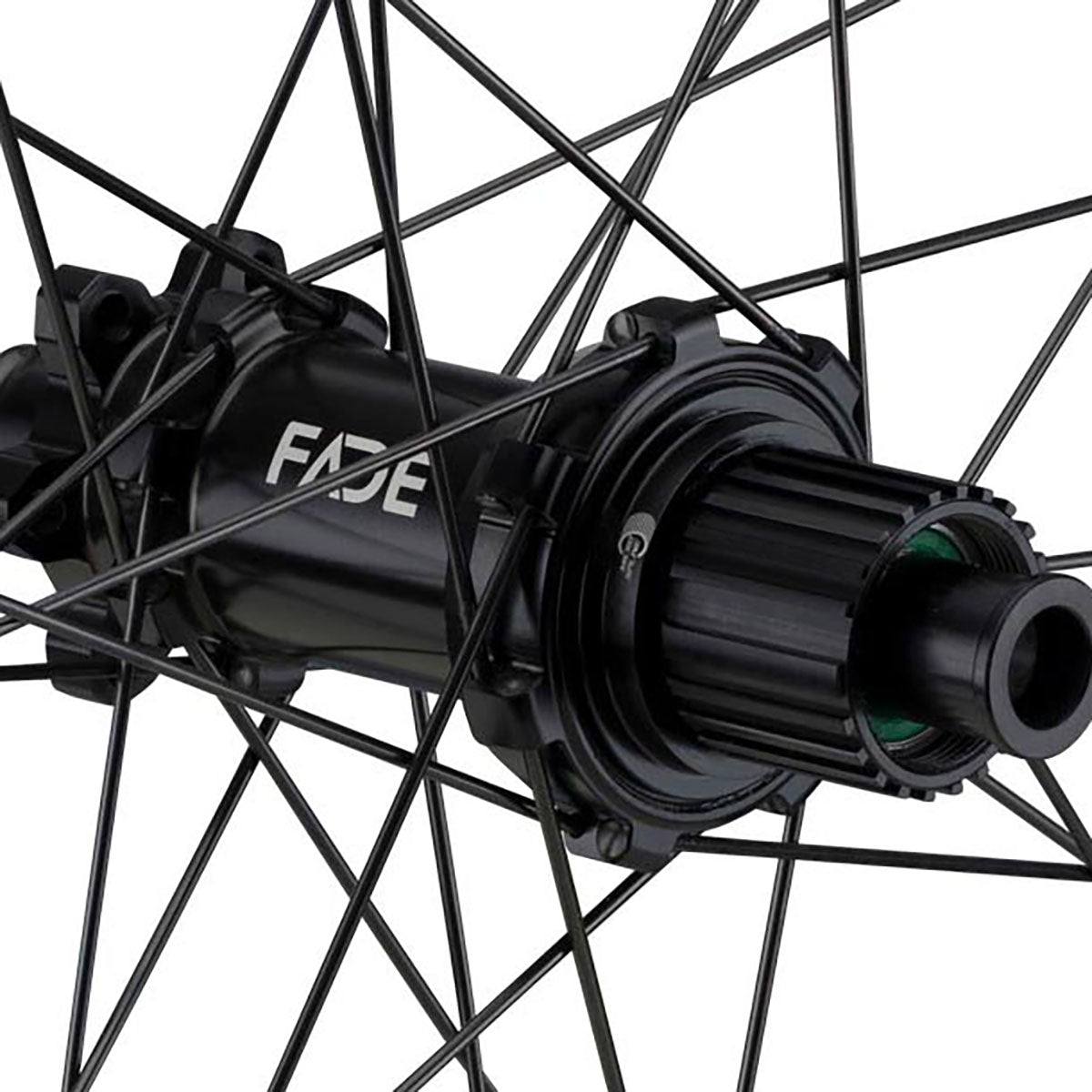

• Proven 28h FADE MTB hubs --> inaudible freewheel on the trail
• Rim with black shotpeen finish
• Discreet laser/sticker artwork
• 28 Sapim 2.0-1.65-2.0 spokes
• Trail bike rear wheel which is ideal for very light builds of bikes with 120mm to 150mm travel
• Impact resistance of the Advanced A.30 has been retained and the weight of the rim reduced by 50g
• hookless tubeless ready
• XD, Microspline, or HG freehub
• E-bike ready, unlimited motor torque
• Max. 130kg system weight

Specifications

Tech
