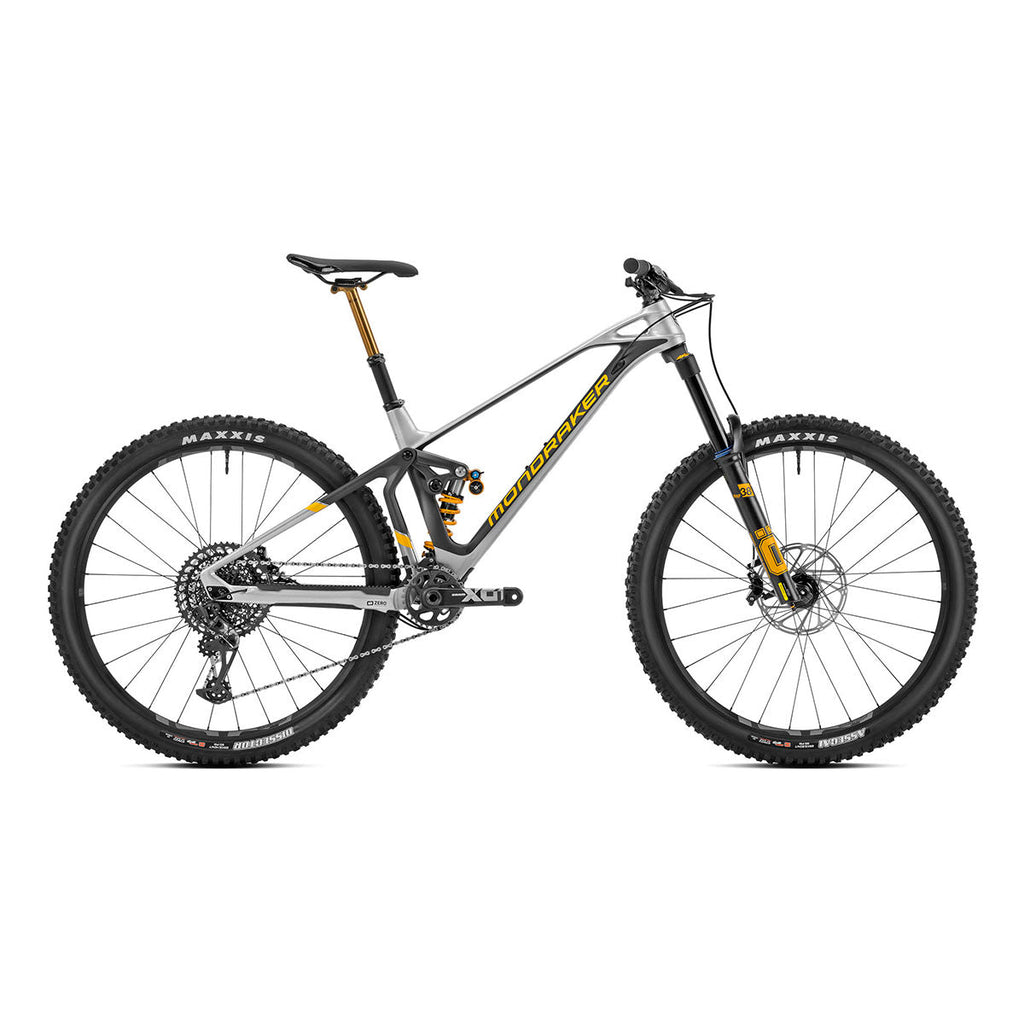

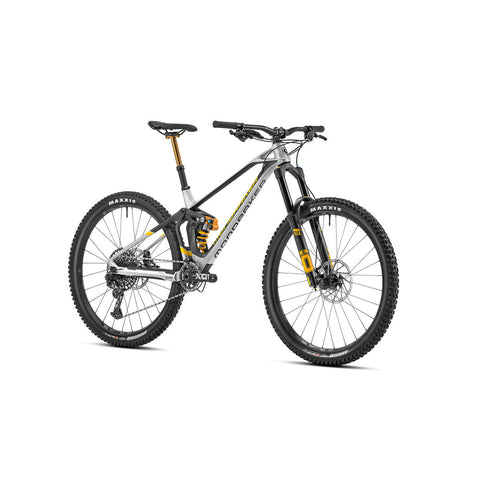

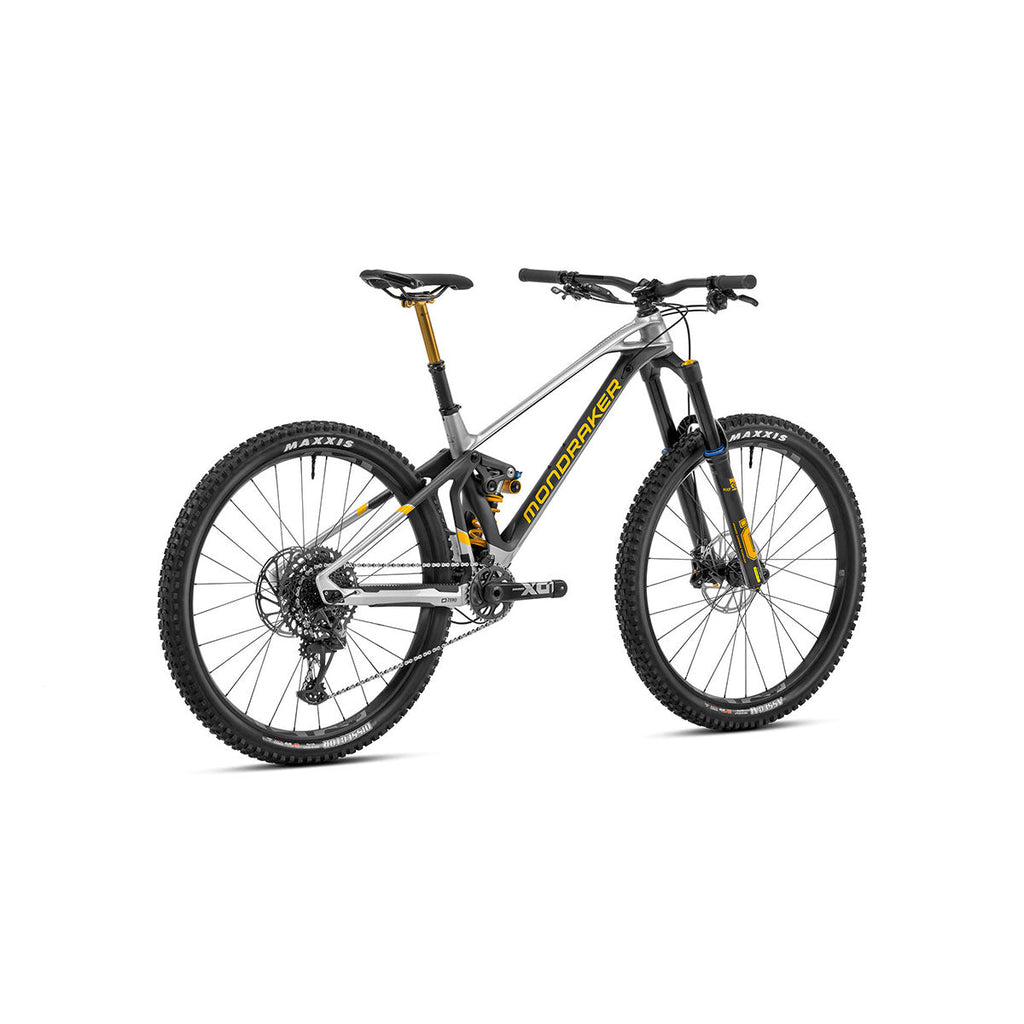

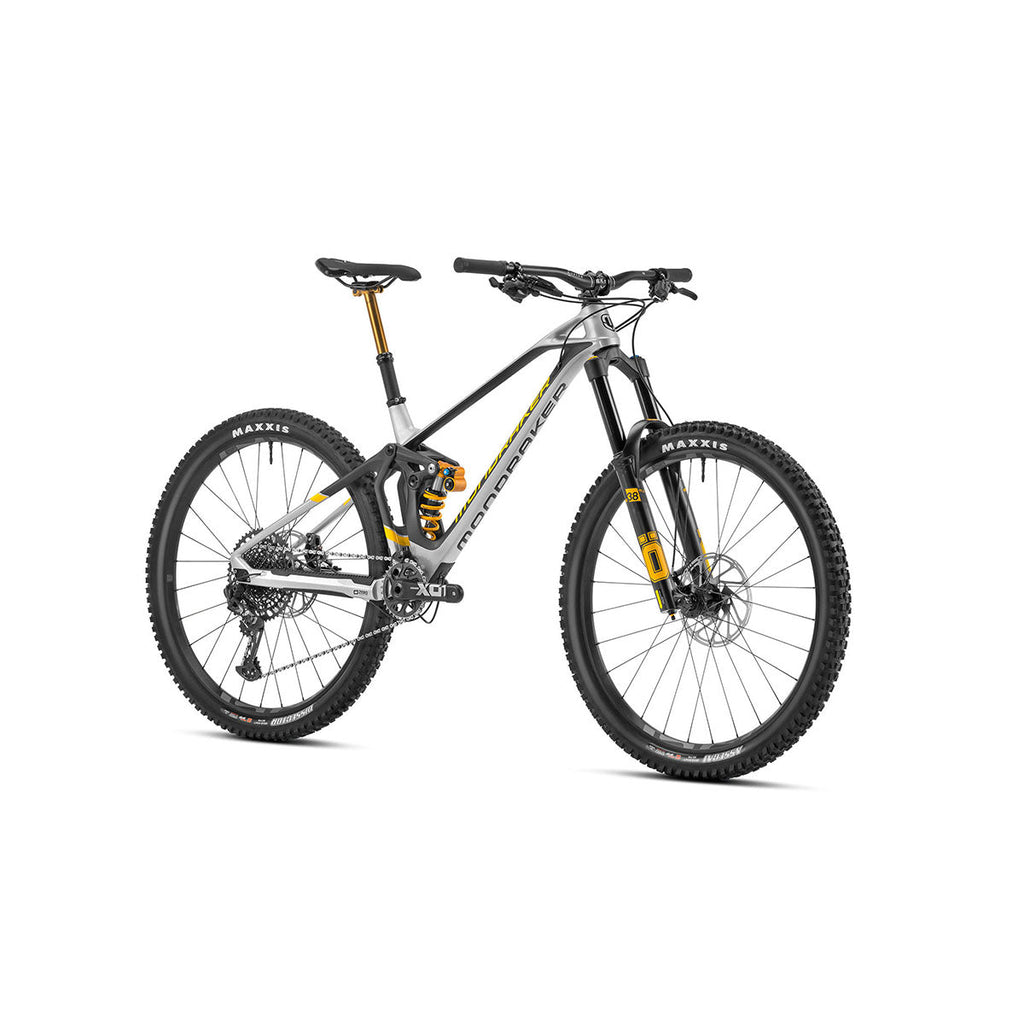

Mondraker - SUPERFOXY CARBON RR Bike - Silver/Carbon/Yellow (SUPER ENDURO)
For inquiries, please call us at 805-707-2777.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Racing Silver / Matte Carbon / Yellow
Experience the Superfoxy Carbon RR difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts more travel and ultralight carbon frame for the gnarliest, hardcore trails.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Superfoxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Superfoxy 2021 features super-boost rear axle and enduro sealed bearings to withstand the rigors of demanding trails. Superfoxy Carbon R is loaded with features such as shock mudguards and dedicated 1X drivetrain for better traction and momentum.
Superfoxy goes above and beyond with more exclusive features like custom frame protectors to soak up vibrations and noise for quieter rides and BSA bottom bracket for improved brake efficiency and noise control. One-piece full-carbon upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Superfoxy Carbon RR sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry,Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSAbottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |
|
SIZES |
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
SHOCK SETTINGS |
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs |
|
FORK |
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
|
HEADSET |
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
|
HANDLEBAR |
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
ONOFF Desert, 1lock-on, 135mm |
|
SEATPOST |
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm |
|
SADDLE |
SDG BEL-AIR 3.0, LPU foam, steel rails |
|
FRONT BRAKE |
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
REAR BRAKE |
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
|
BRAKE LEVER |
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
|
RIMS |
e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|
SPOKES |
e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers |
|
FRONT HUB |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
REAR HUB |
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
|
FRONT TIRE |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
REAR TIRE |
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
CRANKSET |
Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
|
RINGS |
32T, CNC-machined alloy, X-SYNC 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram GX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger X01 Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1275, 10-52T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M071 |
|
OTHERS |
*Geometry Kit Included: 0° headset cups and chainstay adaptor for 450mm CS length |
|
WEIGHT |
15.3 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
603 mm |
626 mm |
651 mm |
675 mm |
|
C |
Bottom Bracket Drop |
-14 mm |
-14 mm |
-14 mm |
-14 mm |
|
D |
Bottom Bracket Height |
357 mm |
357 mm |
357 mm |
357 mm |
|
E |
Chainstay Length |
440 - 450 mm |
440 - 450 mm |
440 - 450 mm |
440 - 450 mm |
|
F |
Seat Tube Angle, Actual |
70.5° |
70.5° |
70.5° |
70.5° |
|
G |
Seat Tube Angle, Effective |
75.5° |
75.5° |
75.5° |
75.5° |
|
H |
Head Tube Angle |
65° |
65° |
65° |
65° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1207 mm |
1230 mm |
1256 mm |
1283 mm |
|
K |
Head Tube Length |
90 mm |
100 mm |
115 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
605 mm |
614 mm |
628 mm |
642 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
