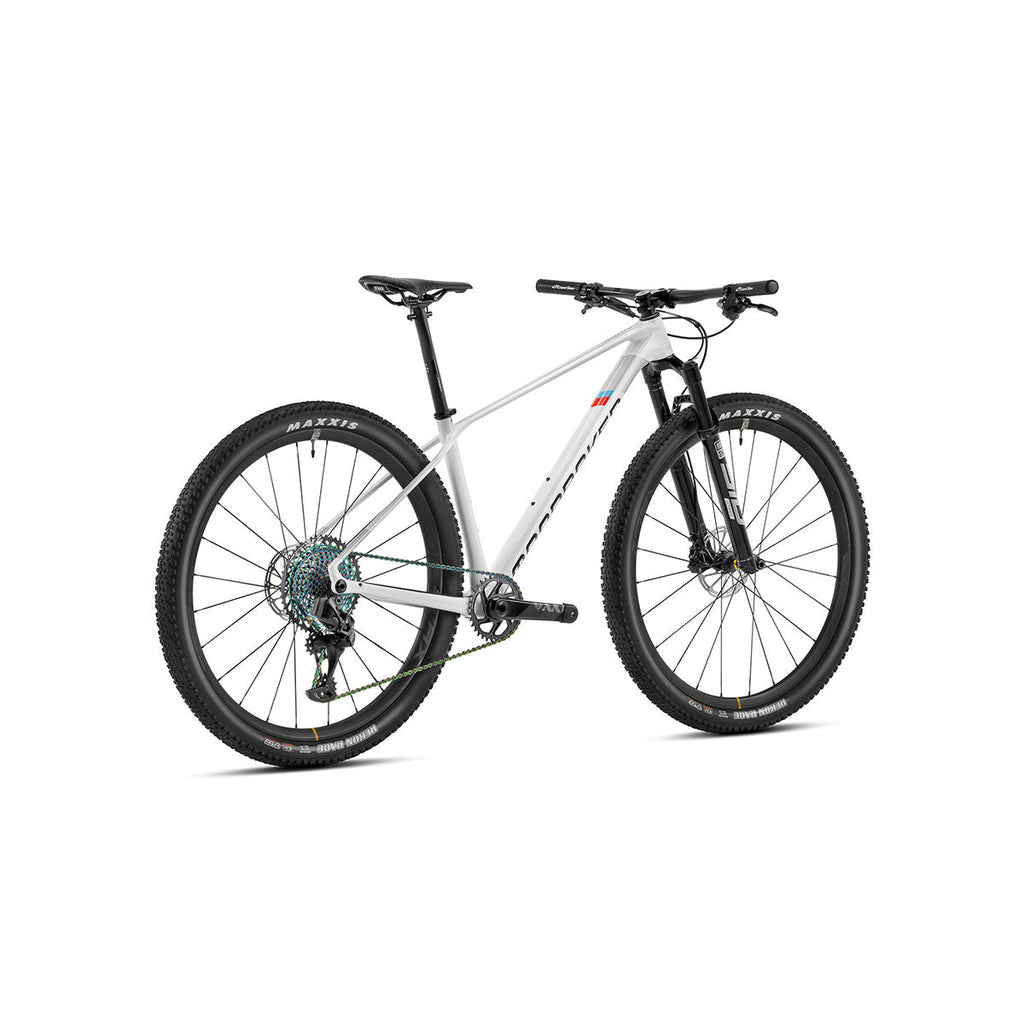

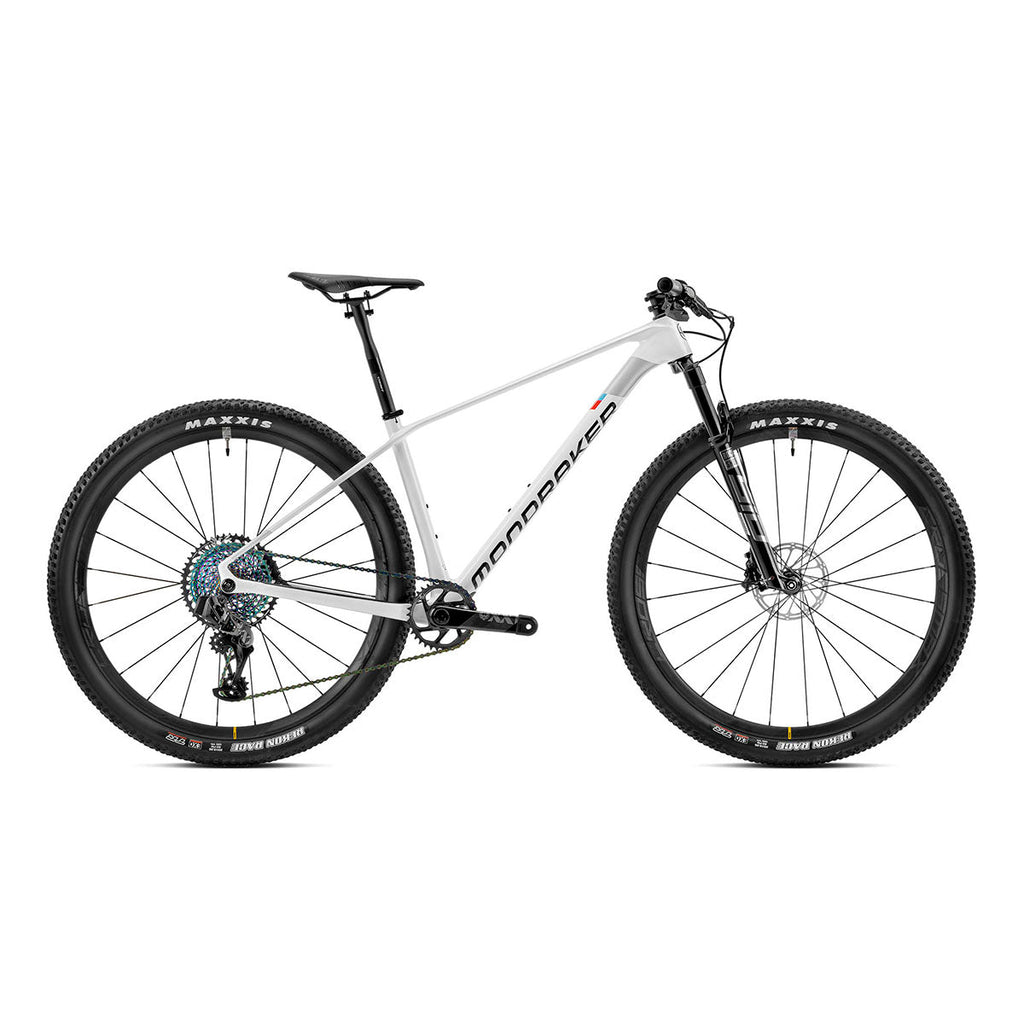

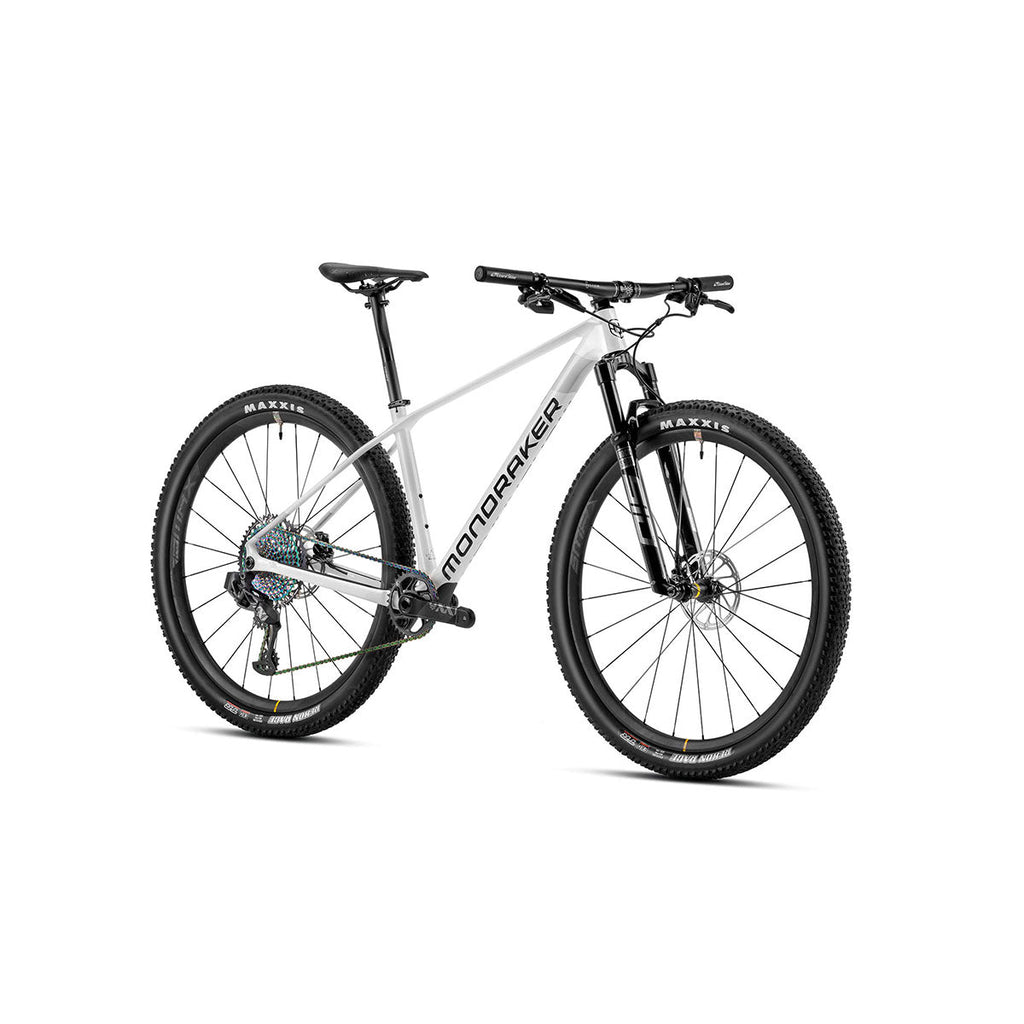

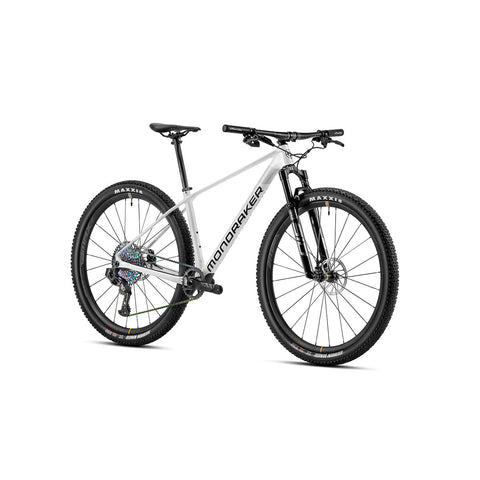

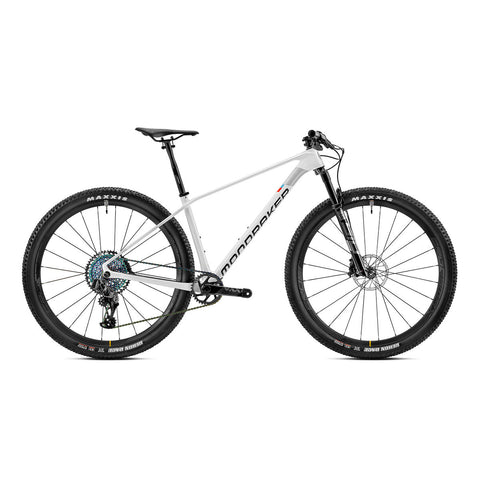

Mondraker - PODIUM CARBON RR SL Bike - White/Silver (XC RACE)
SKU:
MOND-B-Pod-CarbRRSL-White23-S
$10,619.00 USD
$11,999.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Mondraker - PODIUM CARBON RR SL Bike - White/Silver (XC RACE) - S / White-Silver | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Size: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Dirty White / Racing Silver
Experience the ultimate excellence and performance in Cross-country, Marathons, and fast trails! Podium Carbon design has everything going on for high-speed racers - lightweight, extraordinary control, traction, and uncompromised stability!
Podium Carbon RR SL uses the top of the line automotive and aerospace-grade carbon technology to design lightweight, fast and superior, race-ready bikes. By combining incredible pedaling efficiency with a high-performance suspension system, F-Podium has become the new definition of XC bikes.
Extreme XC racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Podium Carbon becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
Podium Carbon RR SL sports an enhanced suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. HHG Internal Cable Routing helps with a minimalistic, clean design.
Podium Carbon RR SL bikes have high-performance rear derailleurs, threaded bottom bracket, boost rear axle, dedicated 1X drivetrain, and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. XC riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
TECH SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible |
|
SIZES |
S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
Rockshox SID SL Ultimate RL 29, 100mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload |
|
FORK REMOTE |
RockShox OneLoc |
|
HEADSET |
ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
|
STEM |
ONOFF Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
|
HANDLEBAR |
ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
|
GRIPS |
Lizard DSP 30.3 |
|
SEATPOST |
|
|
SADDLE |
Fizik Antares R7 |
|
FRONT BRAKE |
Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware |
|
REAR BRAKE |
Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware |
|
BRAKE LEVER |
Sram Level Ultimate, carbon lever, Direct Link actuation, tooled reach adjust, lever pivot bearings, titanium hardware |
|
RIMS |
Mavic Crossmax Carbon SL Ultimate 29, 25mm internal width, hookless, tubeless ready, 24 spokes |
|
SPOKES |
Mavic straight-pull double butted, contactless lacing |
|
FRONT HUB |
Mavic, Boost 15x110mm, IS 6 bolts |
|
REAR HUB |
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
|
FRONT TIRE |
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead |
|
CRANKSET |
Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm |
|
RINGS |
34T, CNC-machined alloy, X-SYNC 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram XX1 Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1, Battery protection |
|
SHIFT LEVERS |
Sram Eagle AXS Rocker paddle, 12s |
|
CASSETTE |
Sram XG1299 10-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Sram UDH |
|
OTHERS |
- |
|
WEIGHT |
8.6kg |
MEASUREMENTS
MEASUREMENTS / GEOMETRY (Click on image to zoom)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
390 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
590 mm |
611mm |
632 mm |
650 mm |
|
C |
Bottom Bracket Drop |
-65 mm |
-65 mm |
-65 mm |
-65 mm |
|
D |
Bottom Bracket Height |
300 mm |
300 mm |
300 mm |
300 mm |
|
E |
Chainstay Legth |
430 mm |
430 mm |
430 mm |
430 mm |
|
F |
Seat Tube Angle, Actual |
73° |
73° |
73° |
73° |
|
G |
Seat Tube Angle, Effective |
74.5° |
74.5° |
74.5° |
74.5° |
|
H |
Head Tube Angle |
68.5° |
68.5° |
68.5° |
68.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1107 mm |
1128 mm |
1150 mm |
1170 mm |
|
K |
Head Tube Length |
85 mm |
90 mm |
100 mm |
115 mm |
|
L |
Reach |
425 mm |
444 mm |
463 mm |
477 mm |
|
M |
Stack |
598 mm |
602 mm |
611 mm |
625 mm |
