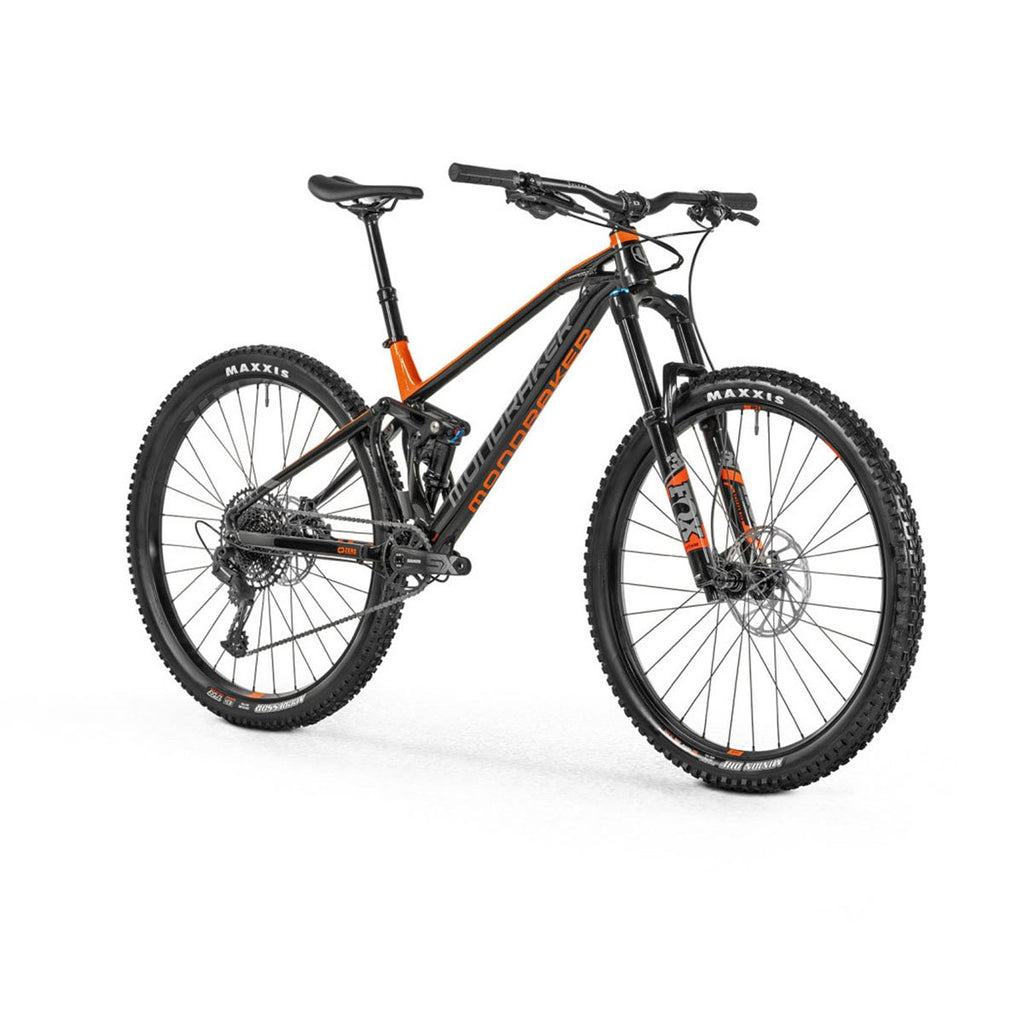

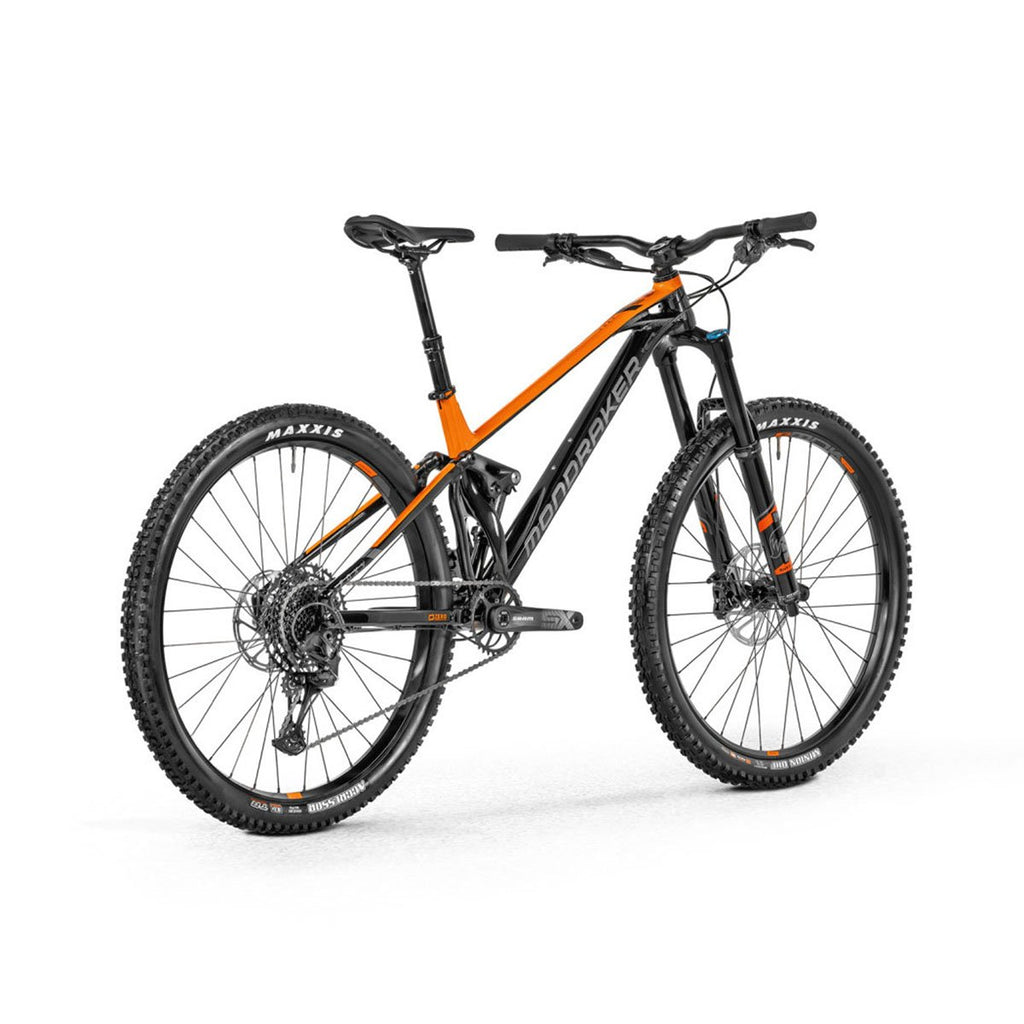

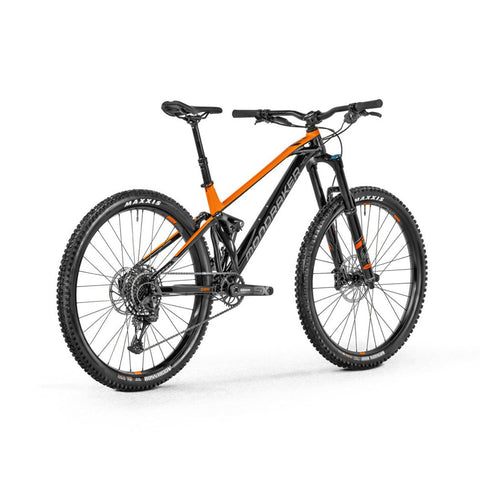

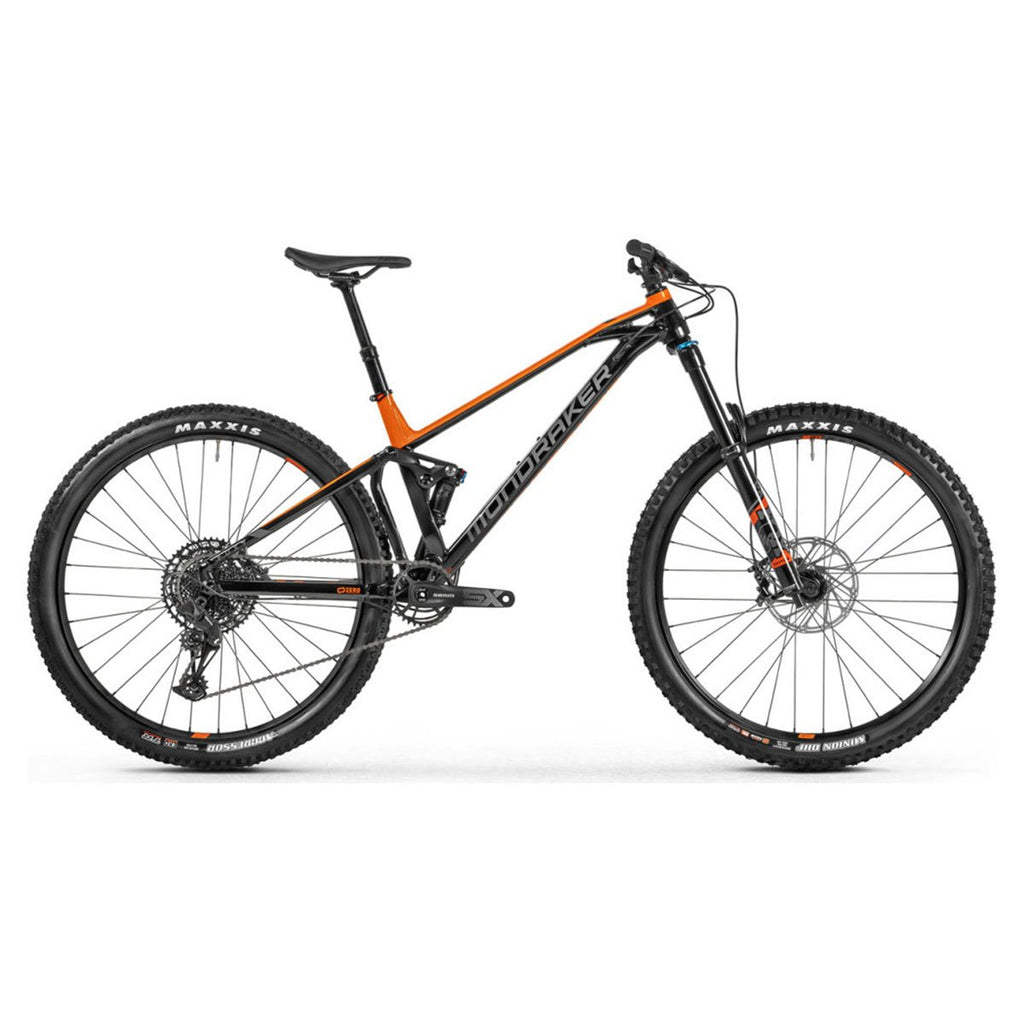

Mondraker - FOXY 29 Bike in Black / Orange (ENDURO AM )
Mondraker - FOXY 29 Bike in Black / Orange (ENDURO AM ) - Black / Orange / Nimbus Grey / S | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
NOTE:
For inquiries, please call us at 805-707-2777.
Free-tax charged outside California State
DESCRIPTION
Experience the Foxy difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Foxy is loaded with more protection features such as sealed Enduro bearings, and performance features like dedicated 1X drivetrain, telescopic Seatpost internal routing, boost rear axle, and BSA bottom bracket for better traction and momentum. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Foxy 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Black / Gloss Orange / Nimbus Grey
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel,Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottombracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealedbearings, ISCG 05 |
|
SIZES |
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compressionadjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
SHOCK SETTINGS |
Light compression, extralight rebound, air volume spacer 0.6 |
|
FORK |
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Twin, 1lock-on, 135mm |
|
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size:425x150mm, XL size: 465x170mm |
|
SADDLE |
SDG BEL-AIR 3.0, LPU foam, steel rails |
|
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
|
RIMS |
MDK-EP1 29 TLR ASY, asymmetrical rim, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI,folding bead |
|
REAR TIRE |
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
|
CRANKSET |
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm |
|
RINGS |
32T, steel, X-Sync 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
606 mm |
629 mm |
654 mm |
678 mm |
|
C |
Bottom Bracket Drop |
-21 mm |
-21 mm |
-21 mm |
-21 mm |
|
D |
Bottom Bracket Height |
355 mm |
355 mm |
355 mm |
355 mm |
|
E |
Chainstay Length |
435 mm |
435 mm |
435 mm |
435 mm |
|
F |
Seat Tube Angle, Actual |
71° |
71° |
71° |
71° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
66° |
66° |
66° |
66° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1193 mm |
1222 mm |
1248 mm |
1274 mm |
|
K |
Head Tube Length |
90 mm |
100 mm |
115 mm |
130 mm |
|
L |
Reach |
450 mm |
475 mm |
495 mm |
515 mm |
|
M |
Stack |
606 mm |
615 mm |
630 mm |
643 mm |
