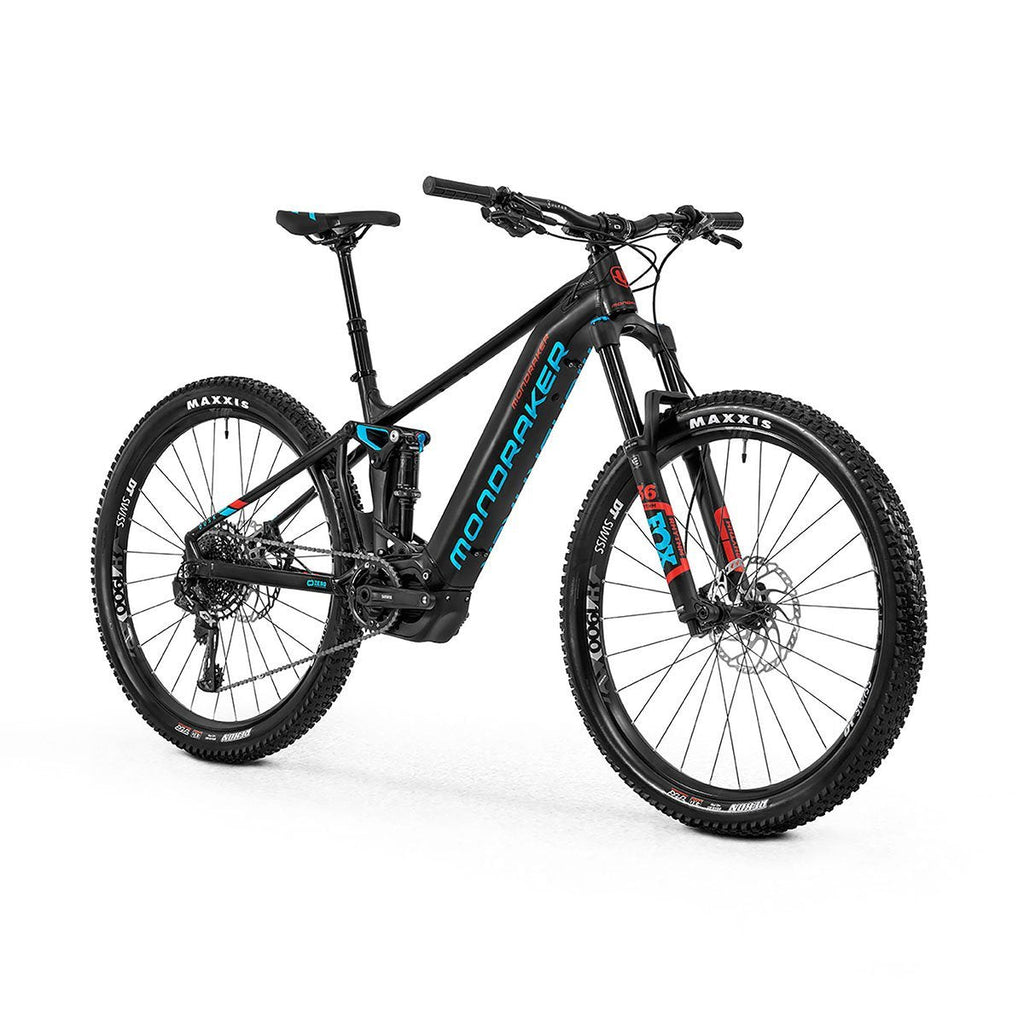

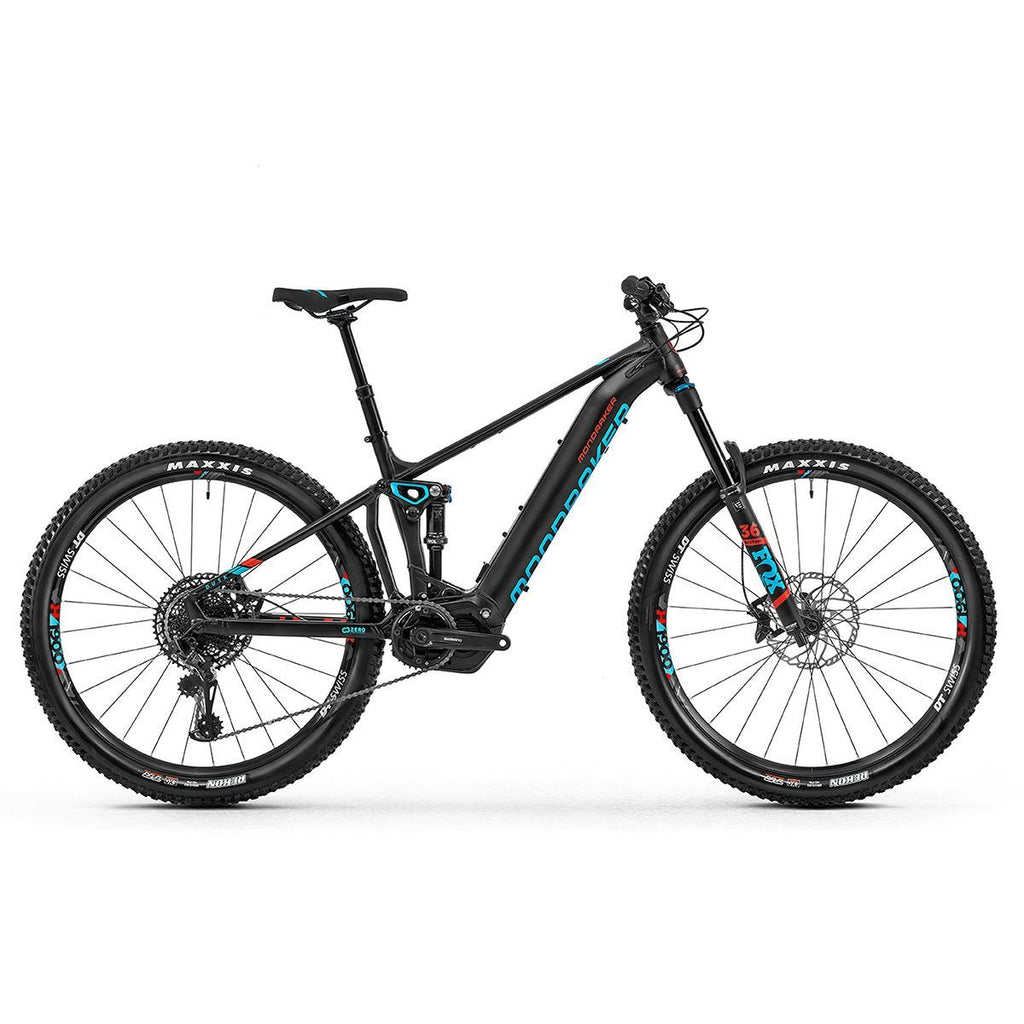

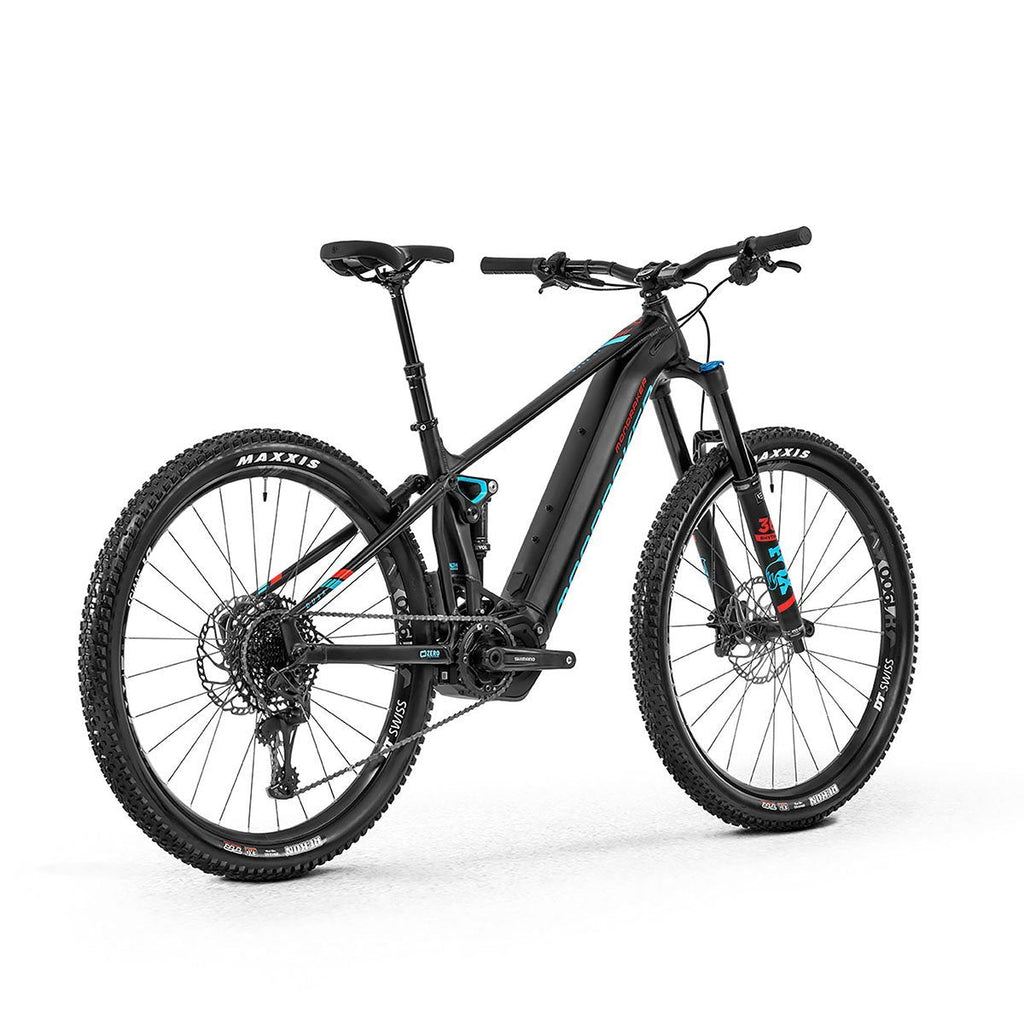

DEMO - Mondraker - DUSK RR 29 Bike (e-MTB ENDURO)
NOTE:
The demo bikes that we sell were used for testing and demonstration purposes and may have some signs of wear and tear. They are sold as-is, without warranty, and all sales are final. Thank you for your understanding.
Actual pictures available upon request.
For inquiries, please call us at 805-707-2777.
COMPONENTS / TECHNICAL SPECIFICATIONS
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Color
Color: Black / Light Blue / Flame Red
Frame

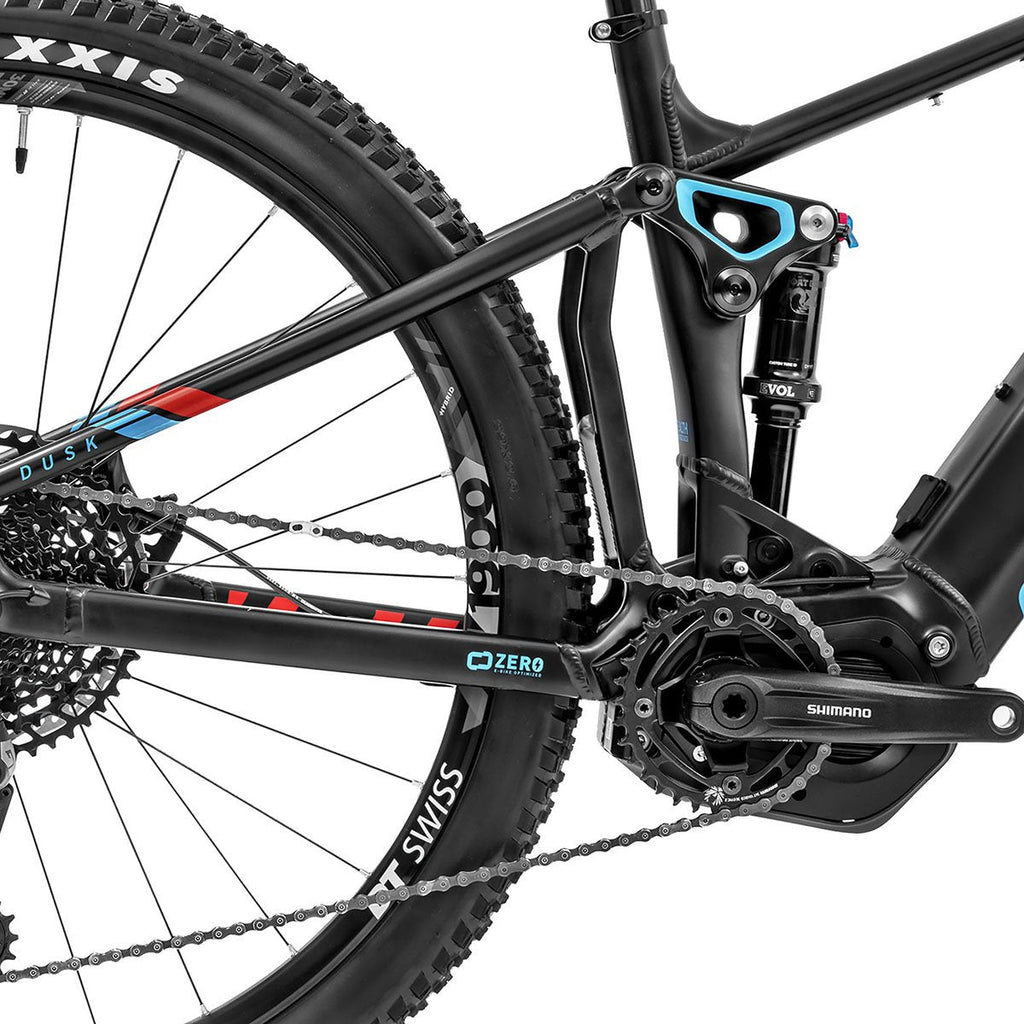

Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery + external, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.
Rear shock

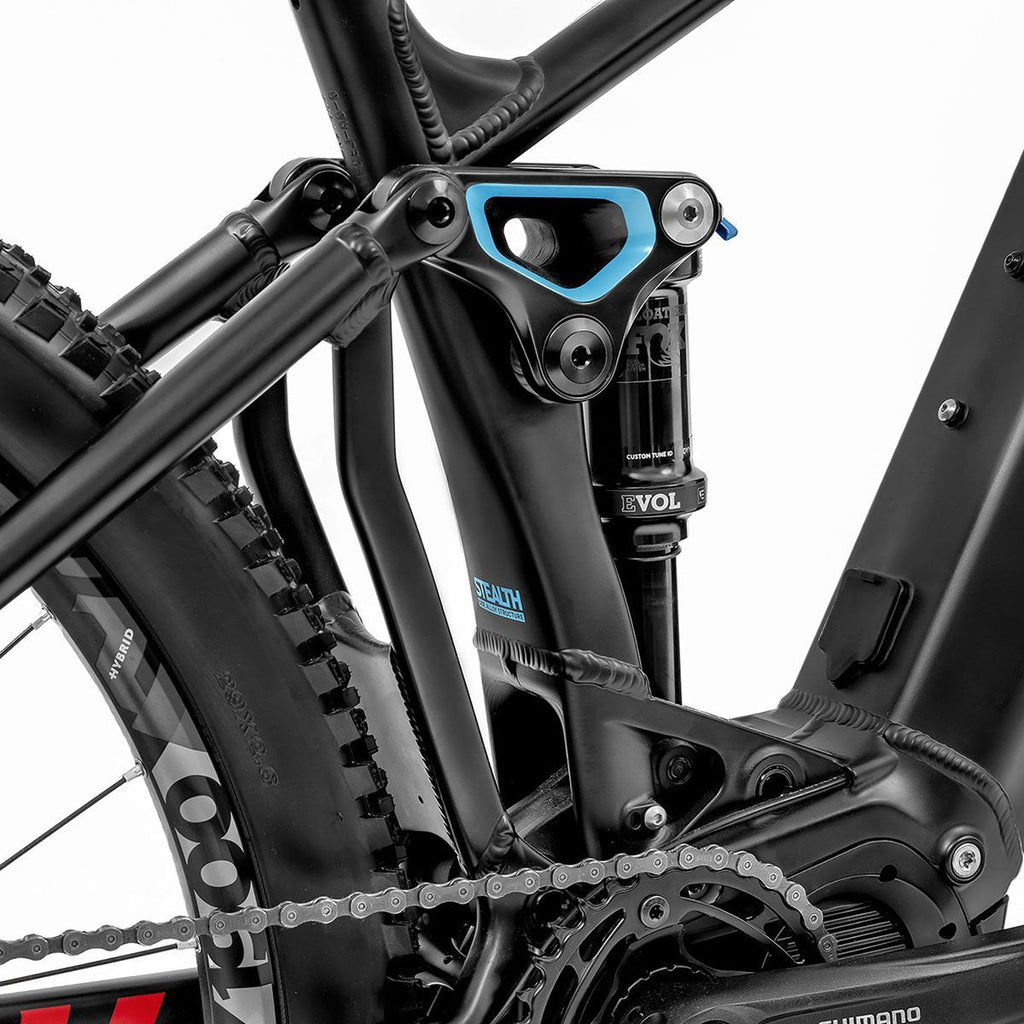

Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock setting
Medium compression, Medium rebound, 0.4 volume spacer

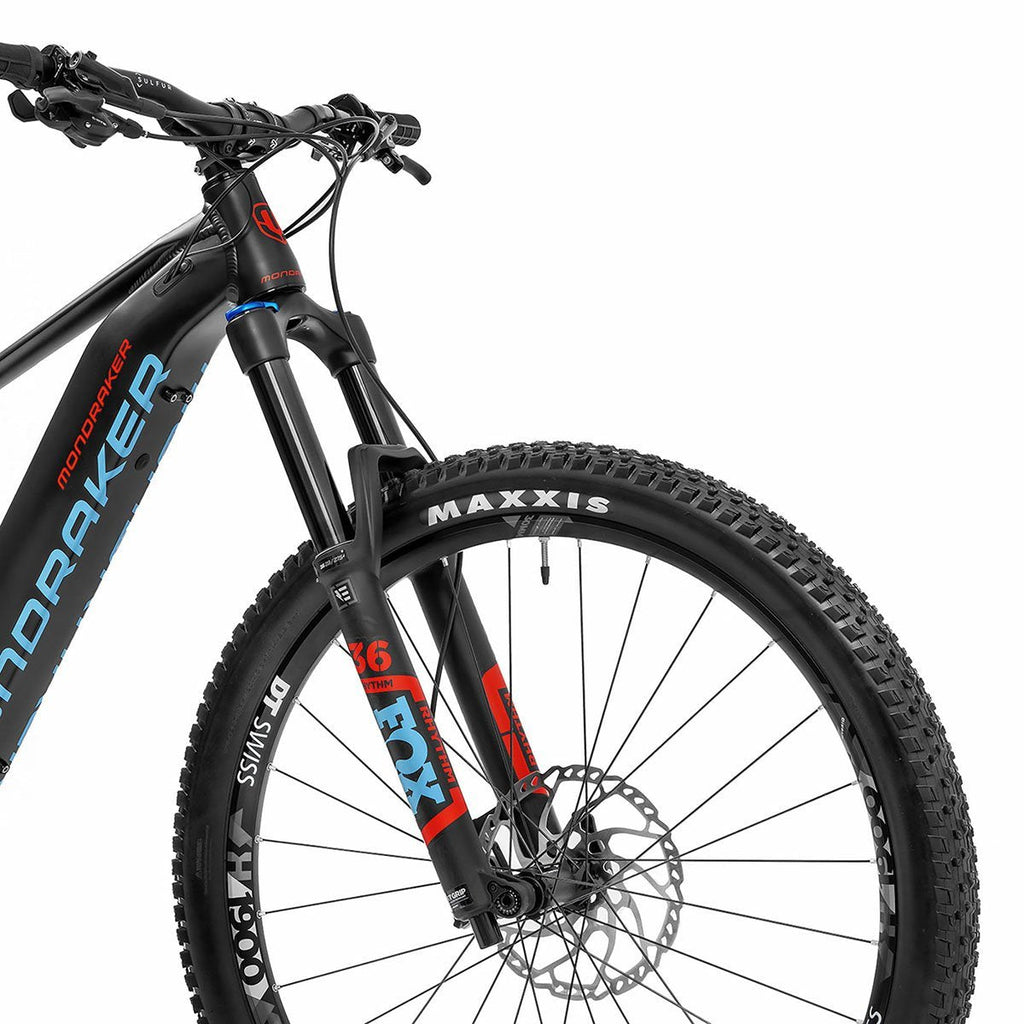

Fork
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8†to 1-1/2†head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Stem
Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar

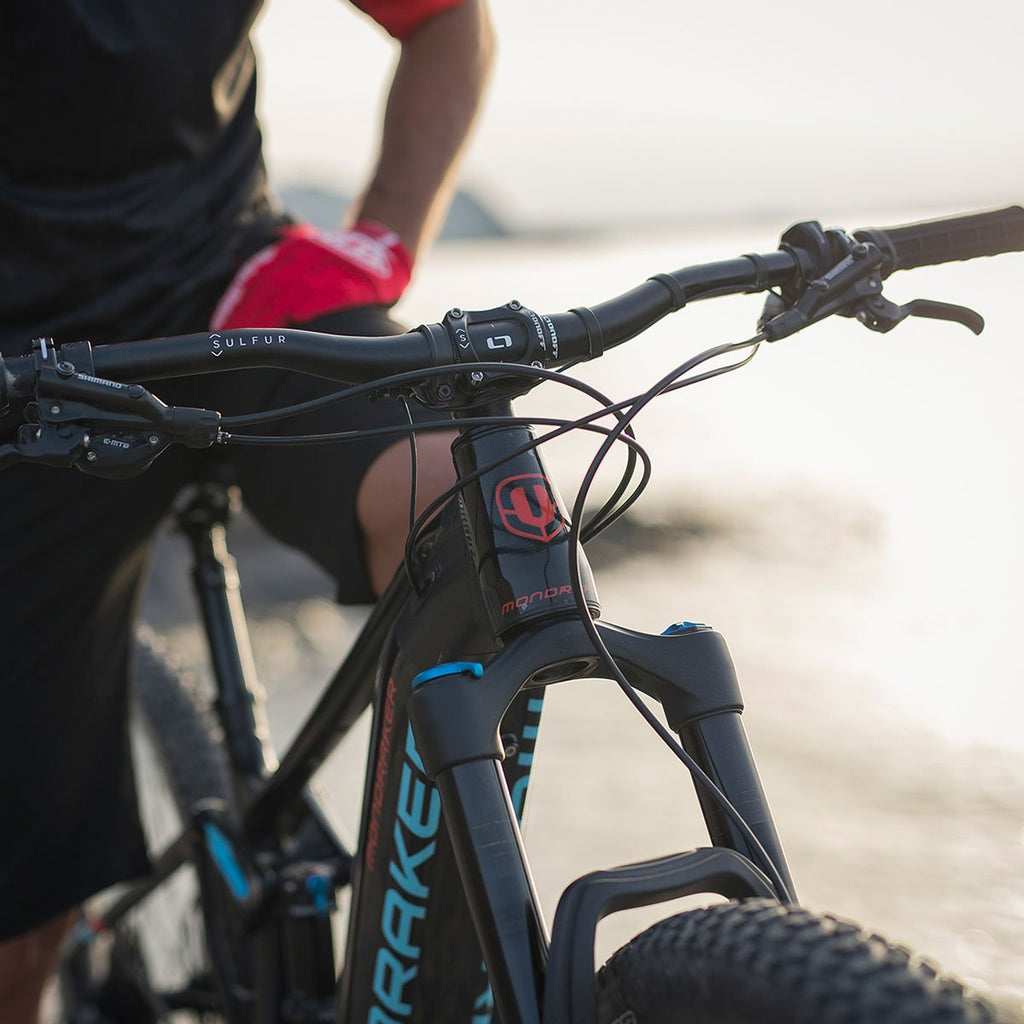

OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x150mm
Saddle
Mondraker e-MTB custom design
Front brake
Shimano MT520, 4-piston caliper, RT66 203mm IS 6 bolts rotor, resin pads
Rear brake
Shimano MT520, 4-piston caliper, RT66 203mm IS 6 bolts rotor, resin pads
Brake lever
Shimano MT501, servo wave, alloy lever
Rim

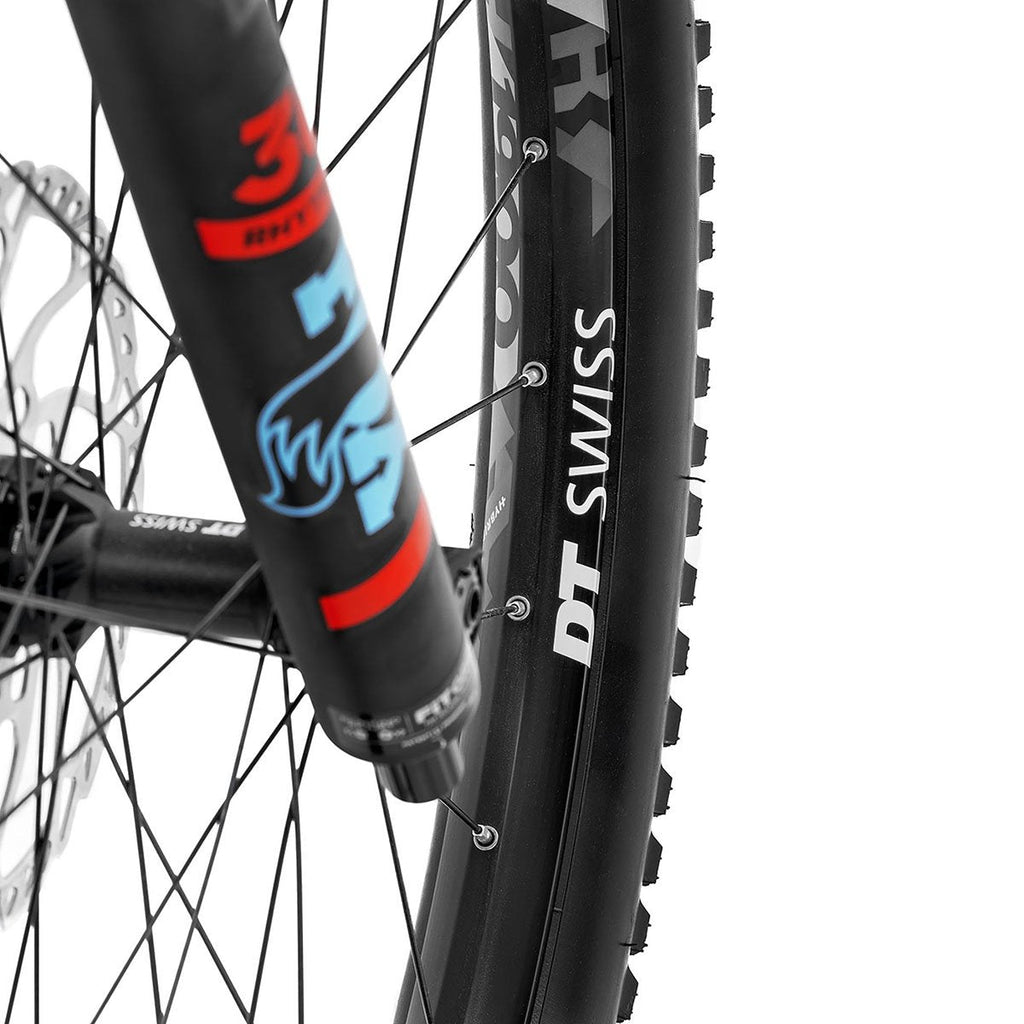

DT Swiss H1900 Spline 29, 30mm internal width, tubeless ready, 28 spokes
Spokes
DT Hybrid SP, straight pull
Front hub
DT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, IS 6 bolts
Front tyre
Maxxis Rekon 29x2.6 tubeless ready, Dual compound, EXO protection, 60TPI, folding bead
Rear tyre
Maxxis Rekon 29x2.6 tubeless ready, Dual compound, EXO protection, 60TPI, folding bead
Crank
Shimano E8000 drive unit, Simplo internal 630Wh integrated battery, Simplo external 360Wh battery, Shimano Steps E7000 display, crankset E8000 hollowtech 165mm
Rings
SRAM X-Sync 2 Eagle 34T, narrow-wide, Shimano 104 BCD steel
Bottom bracket
/
Pedals
/
Chain
Sram SX Eagle, 12s
Front derailleur
/
Rear derailleur
Sram GX, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Lever
Sram Trigger SX, 12s, X-Actuation 1:1, single click
Sprocket
Sram PG-1210 Eagle 11-50, 12s
Hanger
Mondraker M068
Others
/
Weight without pedals
MEASUREMENTS / GEOMETRY
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seat Tube Lenght | 395mm | 430mm | 470mm | 520mm |
| B | Top Tube Lenght | 590mm | 610mm | 630mm | 650mm |
| C | Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D | Bottom Bracket Height | 300mm | 300mm | 300mm | 300mm |
| E | Chainstay Lenght | 432mm | 432mm | 432mm | 432mm |
| F | Seat Tube Angle, Actual | 72° | 72° | 72° | 72° |
| G | Seat Tube Angle, Effective | 73.5° | 73.5° | 73.5° | 73.5° |
| H | Head Tube Angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1086mm | 1106mm | 1127mm | 1147mm |
| K | Head Tube Lenght | 85mm | 90mm | 100mm | 115mm |
| L | Reach | 402mm | 420mm | 437mm | 452mm |
| M | Stack | 637mm | 642mm | 651mm | 666mm |
