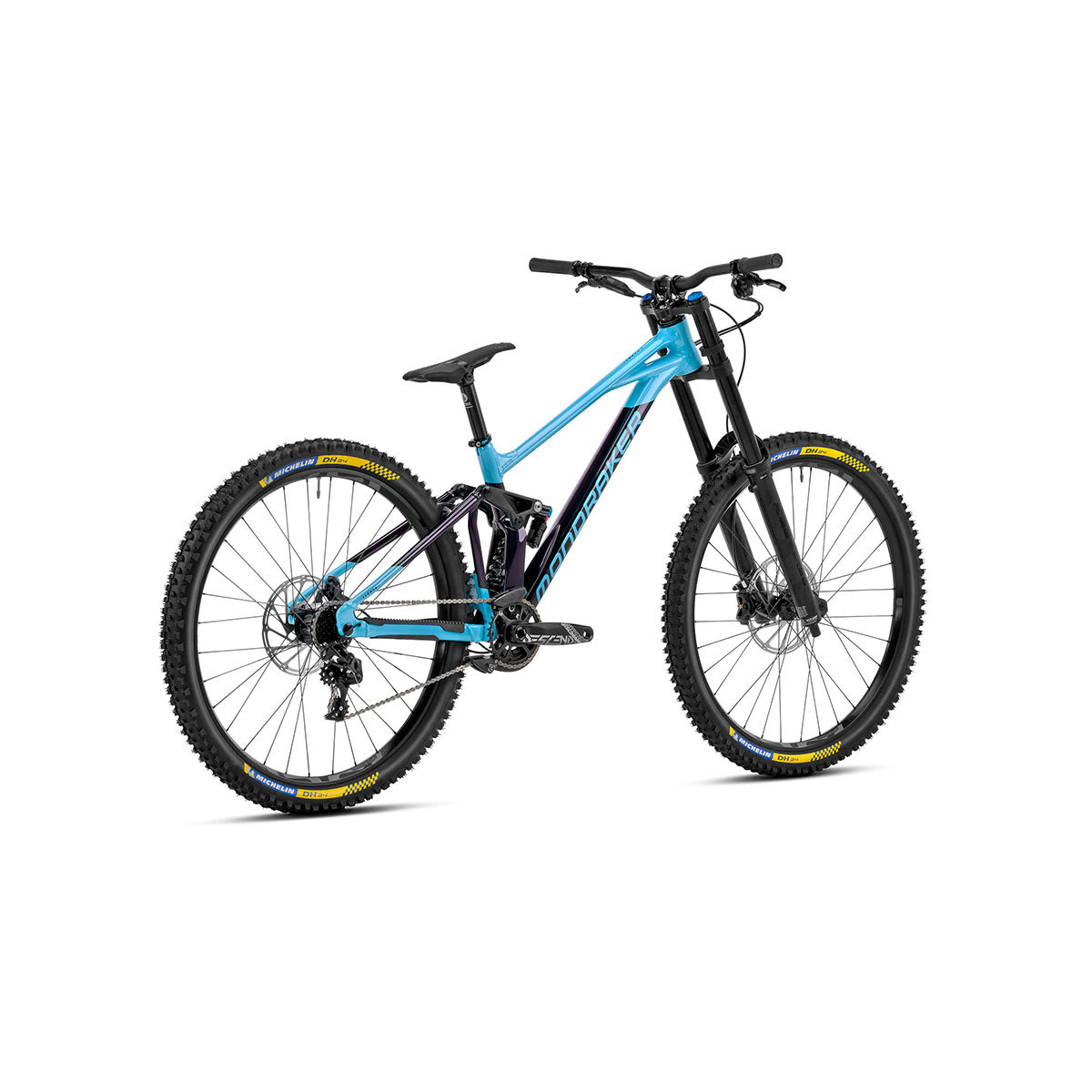

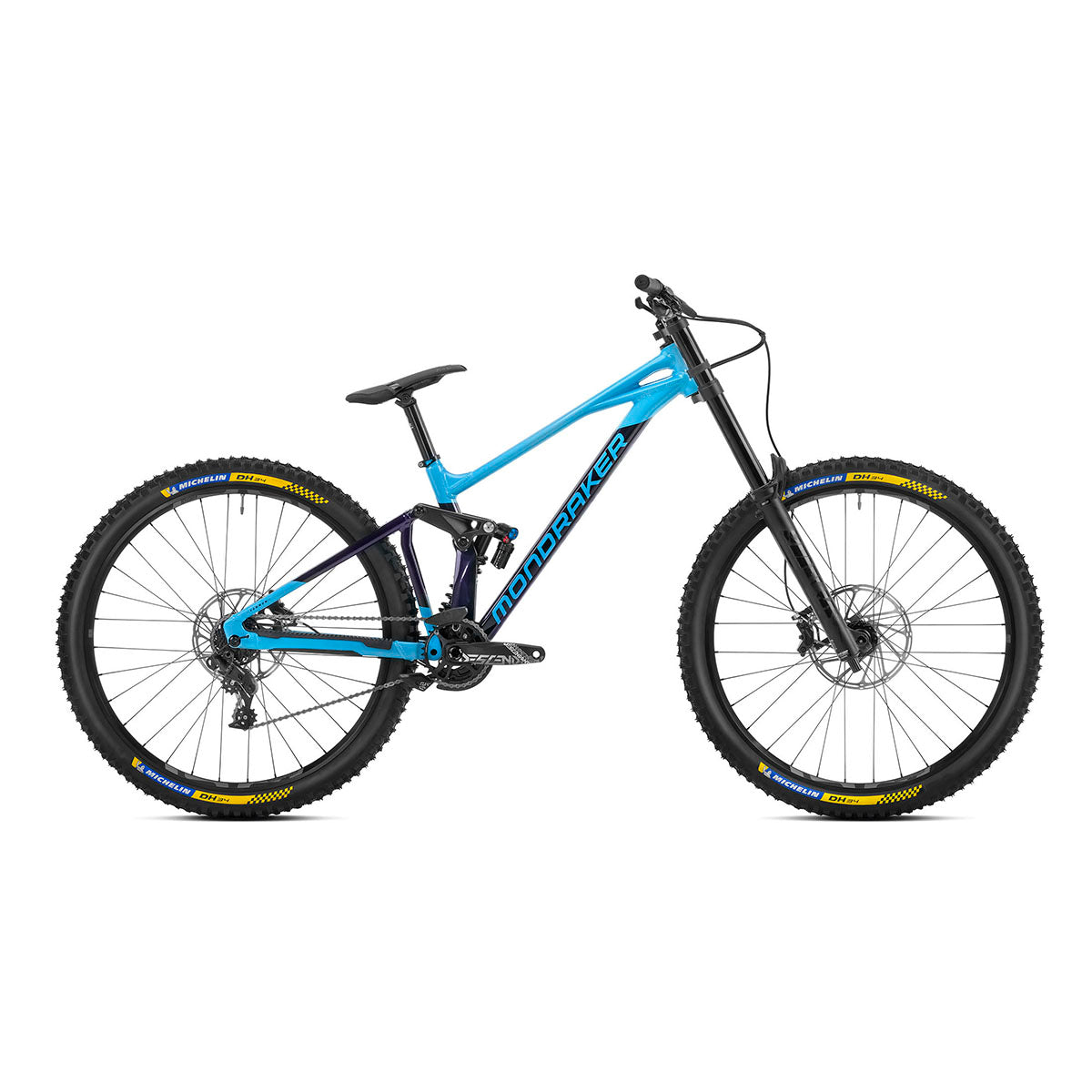

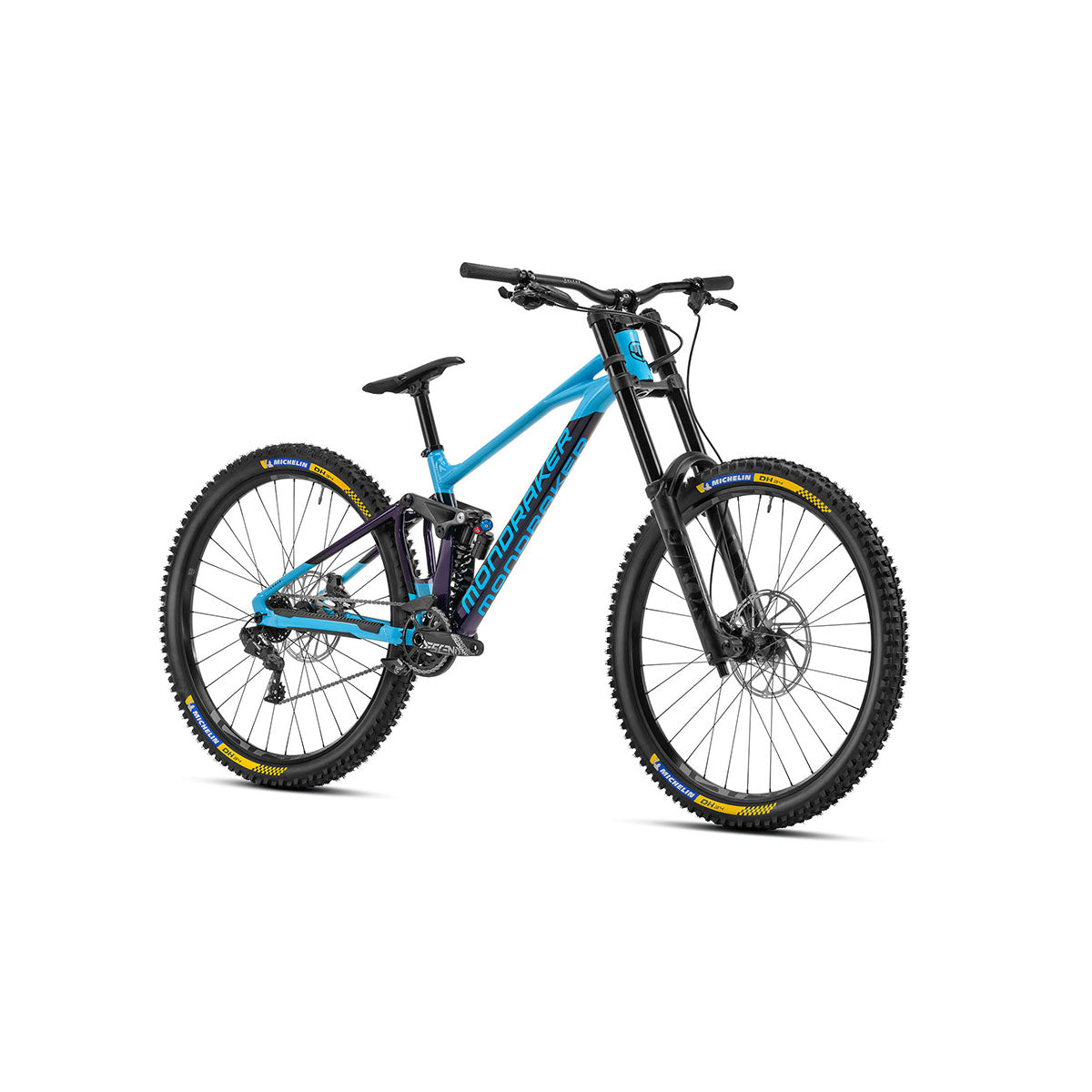

Mondraker - SUMMUM R MX Bike - Deep Purple/Light Blue (DOWNHILL)
Mondraker - SUMMUM R MX Bike - Deep Purple/Light Blue (DOWNHILL) - S / Deep Purple-Light Blue | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm
Colors: Gloss Deep Purple / Light Blue
Summum is Mondraker’s flagship bike, that boasts a world championship-winning design for ultimate downhill rides! Summum R uses HHG Internal Cable Routing for a minimalistic, clean design. This MX option has a 29" front wheel and 27.5" rear wheel for optimum performance on DH tracks. Also available in Non MX option with 29" front and rear wheels.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Downhill riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Summum R sports high-performance front and rear derailleurs, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. Summum is loaded with additional features like dual raw enduro bearings, super-boost rear axle, and hydroformed tubing for traction and control.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel,Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle,83mm BSA bottom bracket, MAX. capacity dual raw Enduro bearings, HHG internal cable routing,ISCG 05. *Optional Geometry kit |
|
SIZES |
S: 400mm / M: 400mm / L: 400mm / XL: 400mm |
|
REAR SHOCK |
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
|
SHOCK SETTINGS |
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
|
FORK |
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload |
|
HEADSET |
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kitcups, external diameter 56mm |
|
STEM |
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Desert, 1lock-on, 135mm |
|
SEATPOST |
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment |
|
SADDLE |
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides |
|
FRONT BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads |
|
REAR BRAKE |
Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads |
|
BRAKE LEVER |
Sram Code R, tool-free reach adjust |
|
RIMS |
e*thirteen LG1 Plus DH, IW29 29” Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers |
|
FRONT HUB |
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
REAR HUB |
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
|
FRONT TIRE |
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
|
REAR TIRE |
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
|
CRANKSET |
Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm |
|
RINGS |
34T, steel, X-SYNC |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 83mm |
|
PEDALS |
- |
|
CHAIN |
Sram PC1110 11s, Powerlock |
|
FRONT DERAILLEUR |
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |
|
REAR DERAILLEUR |
Sram GX DH, 7s, medium cage, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram trigger GX DH 7s, X-actuation 1:1 |
|
CASSETTE |
Sram PG 720 11-25T, 7s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
*Optional geometry kit: +-1° / +-2° headset cups |
|
WEIGHT |
17.9kg |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
400 mm |
400 mm |
400 mm |
400 mm |
|
B |
Top Tube Length |
576 mm |
596 mm |
621 mm |
646 mm |
|
C |
Bottom Bracket Drop |
-15 mm |
-15 mm |
-15 mm |
-15 mm |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
450 mm |
450 mm |
450 mm |
450 mm |
|
F |
Seat Tube Angle, Actual |
69° |
69° |
69° |
69° |
|
G |
Seat Tube Angle, Effective |
77° |
77° |
77° |
77° |
|
H |
Head Tube Angle |
63.5° |
63.5° |
63.5° |
63.5° |
|
I |
Fork Offset |
58 mm |
58 mm |
58 mm |
58 mm |
|
J |
Wheelbase |
1256 mm |
1270 mm |
1301 mm |
1326 mm |
|
K |
Head Tube Length |
112 mm |
112 mm |
112 mm |
112 mm |
|
L |
Reach |
430 mm |
450 mm |
475 mm |
500 mm |
|
M |
Stack |
632 mm |
632 mm |
632 mm |
632 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
