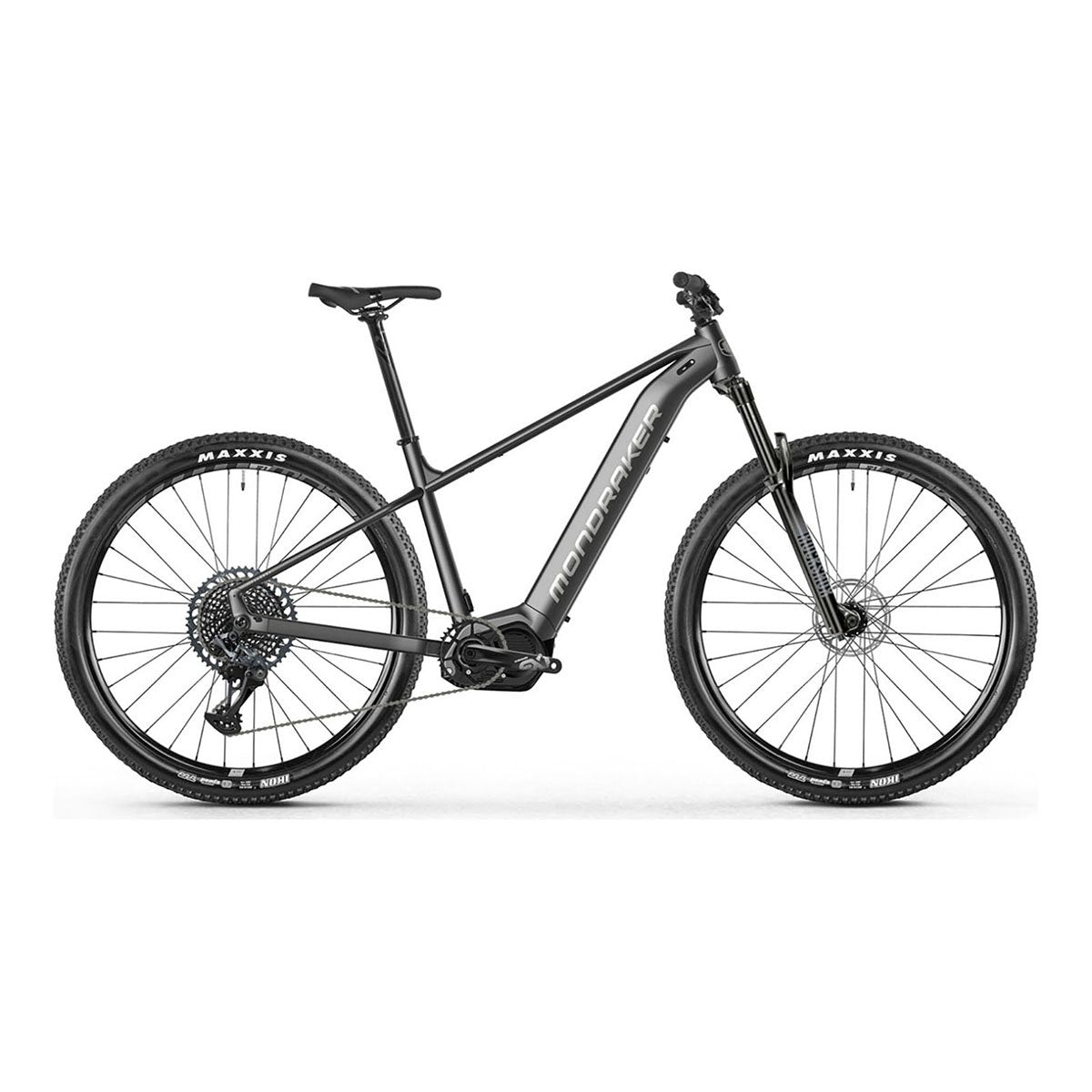

Mondraker - THUNDRA 29 Bike - Graphite-Silver (e-MTB TRAIL)
NOTE:
For inquiries, please call us at 805-707-2777.
Free-tax charged outside California State
** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.
DESCRIPTION
Sizes: XS: 380mm / S: 390 mm / M: 430mm / L: 470mm / XL: 510mm
Colors: Gloss Graphite / Racing Silver
Get ready to experience the thrill with the Thundra 29 e-MTB bike designed for trail, XC and all-mountain riding! The top-end emountain bike with modern geometry, integrated dropout speed sensor, and Xtralite alloy frame is a beauty.
Unleash the power of the Shimano E7000 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
Thundra 29 Ebike sports high-performance rear derailleurs, boost rear axle, integrated dropout speed sensor, and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. Mondraker’s unique high-performance suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.
Riding stats are just a few clicks away on the Shimano Steps E5003 display, with easy wireless connectivity features.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Thundra 6061 Xtralite Full Butted Alloy, Forward Geometry, integrated internal non-removablebattery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor.*Optional external battery |
|
SIZES |
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mmaxle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
REAR TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
CRANKSET |
FSA, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
Sram SX Eagle, 12s, Powerlock |
|
CHAIN |
- |
|
FRONT DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
REAR DERAILLEUR |
- |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
Shimano STEPS E7000 |
|
BATTERY |
Simplo internal 630Wh |
|
DISPLAY |
Shimano STEPS E5003 |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
*Optional external battery: Simplo 360Wh |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
XS |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
390 mm |
430 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
600 mm |
615 mm |
645 mm |
670 mm |
700 mm |
|
C |
Bottom Bracket Drop |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
-60 mm |
|
D |
Bottom Bracket Height |
317 mm |
317 mm |
317 mm |
317 mm |
317 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
G |
Seat Tube Angle, Effective |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
|
H |
Head Tube Angle |
69° |
69° |
69° |
69° |
69° |
|
I |
Fork Offset |
51 mm |
51 mm |
51 mm |
51 mm |
51 mm |
|
J |
Wheelbase |
1138mm |
1153 mm |
1183 mm |
1210 mm |
1240 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
410 mm |
425 mm |
455 mm |
480 mm |
505 mm |
|
M |
Stack |
640 mm |
640 mm |
640 mm |
658 mm |
658 mm |
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
