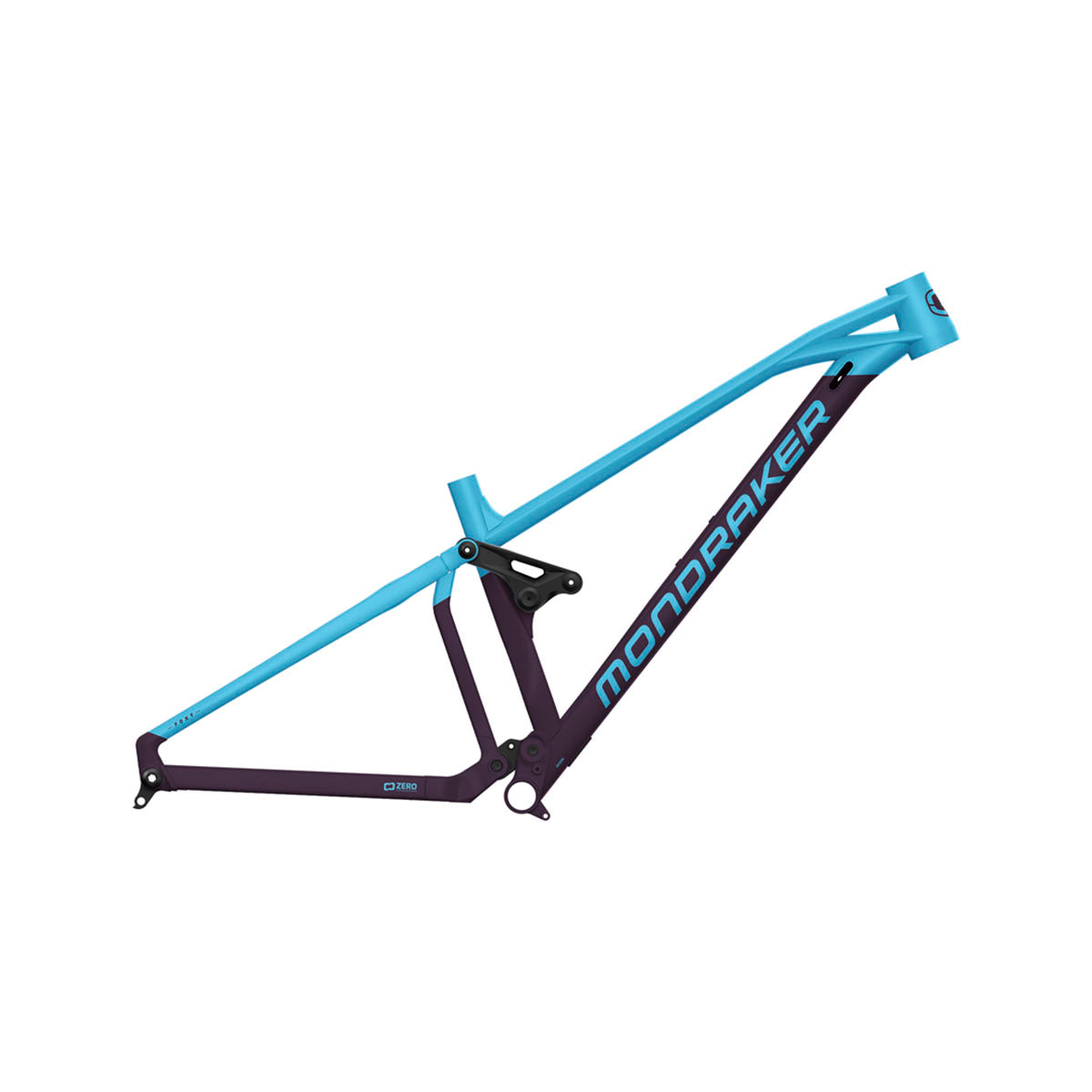

Mondraker - FOXY R Frame Kit - Deep Purple/Light Blue (ENDURO/AM)

Name: Mondraker - FOXY R Frame Kit - Deep Purple/Light Blue (ENDURO/AM)
Brand: Mondraker
SKU: MOND-F-Foxy-R-Purple23-S
Price: 3099.0 USD
Availability: OutOfStock

SKU: MOND-F-Foxy-R-Purple23-S

$3,099.00 USD ~~$3,199.00~~

Shipping calculated at checkout.

Size

S M L XL

Color: Deep Purple-Light Blue

Mondraker - FOXY R Frame Kit - Deep Purple/Light Blue (ENDURO/AM)

Product variants

Frame kit for Mondraker Foxy R Bike 2023

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Deep Purple / Light Blue

Zero Suspension: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Forward Geometry: Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

Stealth Alloy: The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
SIZES	S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK	Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
HEADSET	ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

	Size	S	M	L	XL
A	Seat Tube Length	380 mm	420 mm	470 mm	510 mm
B	Top Tube Length	606 mm	629 mm	654 mm	678 mm
C	Bottom Bracket Drop	-21 mm	-21 mm	-21 mm	-21 mm
D	Bottom Bracket Height	355 mm	355 mm	355 mm	355 mm
E	Chainstay Length	435 mm	435 mm	435 mm	435 mm
F	Seat Tube Angle, Actual	71°	71°	71°	71°
G	Seat Tube Angle, Effective	76°	76°	76°	76°
H	Head Tube Angle	66°	66°	66°	66°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1193 mm	1222 mm	1248 mm	1274 mm
K	Head Tube Length	90 mm	100 mm	115 mm	130 mm
L	Reach	450 mm	475 mm	495 mm	515 mm
M	Stack	606 mm	615 mm	630 mm	643 mm

BIKE SIZE GUIDE

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Deep Purple / Light Blue

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

SIZES

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

HEADSET

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Size

Seat Tube Length

380 mm

420 mm

470 mm

510 mm

Top Tube Length

606 mm

629 mm

654 mm

678 mm

Bottom Bracket Drop

-21 mm

Bottom Bracket Height

355 mm

Chainstay Length

435 mm

Seat Tube Angle, Actual

71°

Seat Tube Angle, Effective

76°

Head Tube Angle

66°

Fork Offset

44 mm

Wheelbase

1193 mm

1222 mm

1248 mm

1274 mm

Head Tube Length

90 mm

100 mm

115 mm

130 mm

Reach

450 mm

475 mm

495 mm

515 mm

Stack

606 mm

615 mm

630 mm

643 mm
